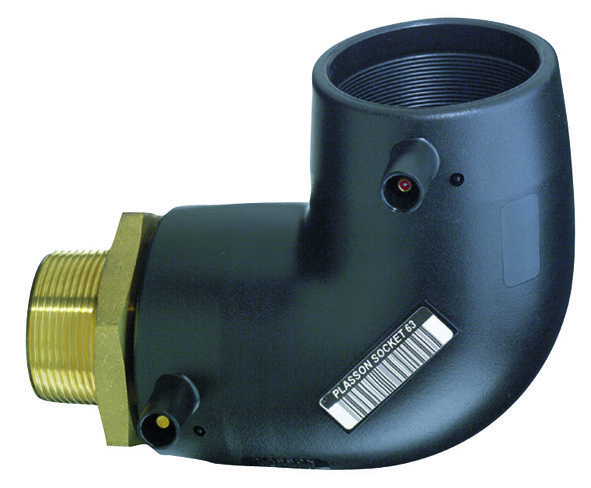

Übergangswinkel 90°, Außengewinde Messing
Wasser PN 16

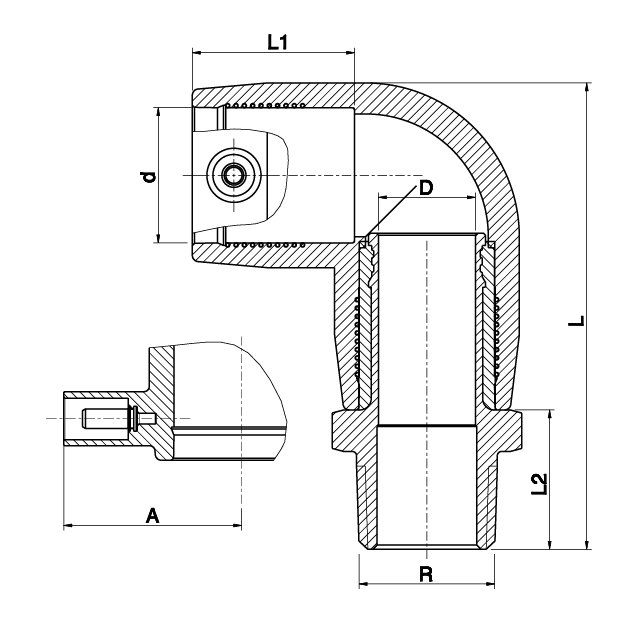

| Artikelnummer | d x R | L | L1 | L2 | Stk/Ktn | Gewicht g |
|---|---|---|---|---|---|---|
| 09250-020.02P | 20 x 1/2" | 95 | 64 | 29 | 400 | 150 |
| 09250-025.03P | 25 x 3/4" | 93 | 61 | 29 | 120 | 240 |
| 09250-032.02P | 32 x 1/2" | 107 | 70 | 29 | 96 | 263 |
| 09250-032.03P | 32 x 3/4" | 107 | 70 | 29 | 96 | 266 |
| 09250-032.04P | 32 x 1" | 112 | 76 | 34 | 84 | 270 |
| 09250-032.05P | 32 x 1.1/4" | 115 | 79 | 36 | 60 | 416 |
| 09250-032.06P | 32 x 1.1/2" | 115 | 79 | 36 | 60 | 427 |
| 09250-040.04P | 40 x 1" | 127 | 81 | 34 | 48 | 450 |
| 09250-040.05P | 40 x 1.1/4" | 129 | 83 | 36 | 48 | 500 |
| 09250-040.06P | 40 x 1.1/2" | 129 | 83 | 36 | 48 | 525 |
| 09250-050.04P | 50 x 1" | 143 | 86 | 34 | 42 | 570 |
| 09250-050.05P | 50 x 1.1/4" | 145 | 88 | 36 | 36 | 620 |
| 09250-050.06P | 50 x 1.1/2" | 145 | 88 | 36 | 36 | 605 |
| 09250-050.08P | 50 x 2" | 150 | 93 | 41 | 30 | 790 |
| 09250-063.05P | 63 x 1.1/4" | 168 | 97 | 36 | 24 | 985 |
| 09250-063.06P | 63 x 1.1/2" | 168 | 97 | 36 | 24 | 920 |
| 09250-063.08P | 63 x 2" | 173 | 102 | 41 | 24 | 1.005 |
| 09250-075.08P | 75 x 2" | 191 | 106 | 41 | 16 | 1.450 |
| 09250-075.10P | 75 x 2.1/2" | 196 | 111 | 46 | 16 | 1.650 |
