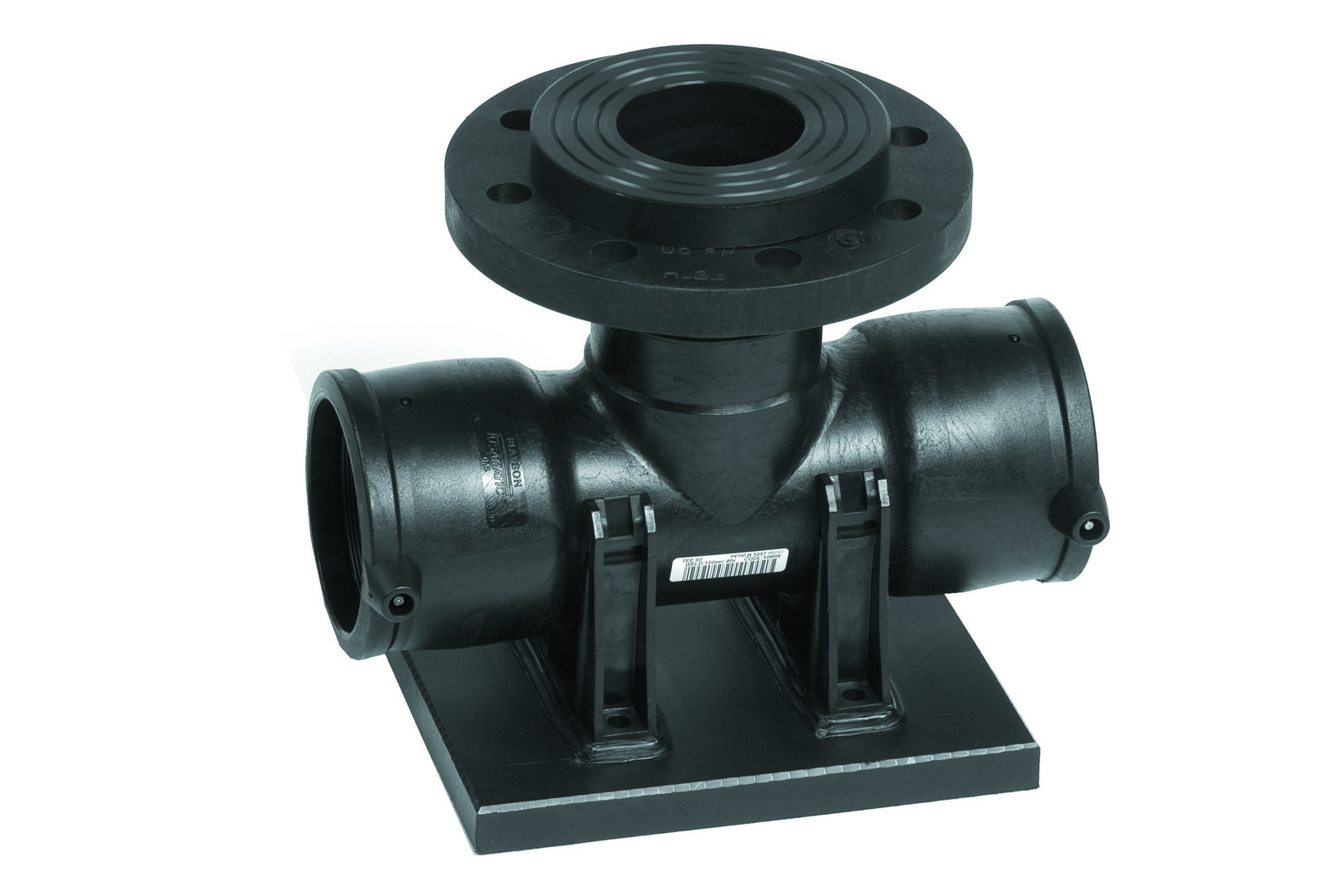

T-Stück mit Stahlflansch und Standfuss
PP-Ummantelt
Gas PN 10, Wasser PN 16

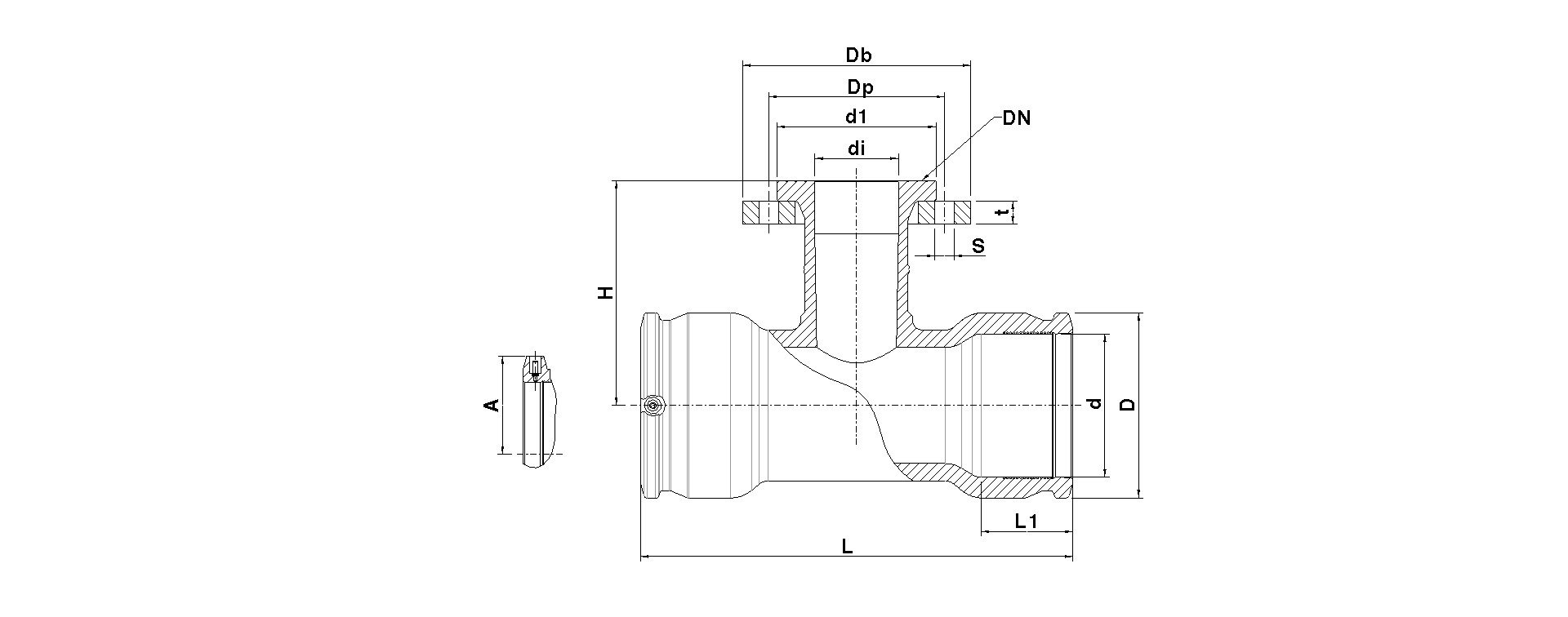

| Artikelnummer | d x d1 x d | L | D | Dp | H | Stk/Ktn | Gewicht g |
|---|---|---|---|---|---|---|---|
| 09947-090.80P | 90 x 80 x 90 | 293 | 112 | 160 | 165 | 1 | 3.035 |
| 09947-110.80P | 110 x 80 x 110 | 328 | 143 | 160 | 181 | 1 | 3.760 |
| 09947-110.100P | 110 x 100 x 110 | 328 | 143 | 180 | 181 | 1 | 4.440 |
| 09947-125.80P | 125 x 80 x 125 | 381 | 163 | 160 | 190 | 1 | 4.750 |
| 09947-125.100P | 125 x 100 x 125 | 381 | 163 | 180 | 190 | 1 | 5.485 |
| 09947-160.80P | 160 x 80 x 160 | 443 | 212 | 160 | 210 | 1 | 6.545 |
| 09947-160.110P | 160 x 100 x 160 | 443 | 212 | 180 | 210 | 1 | 7.085 |
| 09947-180.80P | 180 x 80 x 180 | 420 | 244 | 160 | 225 | 1 | 8.045 |
| 09947-180.100P | 180 x 100 x 180 | 420 | 244 | 180 | 225 | 1 | 8.855 |
| 09947-200.80P | 200 x 80 x 200 | 447 | 261 | 160 | 290 | 1 | 8.810 |
| 09947-200.100P | 200 x 100 x 200 | 447 | 261 | 180 | 290 | 1 | 9.630 |
| 09947-225.80P | 225 x 80 x 225 | 492 | 294 | 160 | 298 | 1 | 11.640 |
| 09947-225.100P | 225 x 100 x 225 | 492 | 294 | 180 | 298 | 1 | 12.300 |
| 09947-250.80P | 225 x 80 x 225 | 538 | 326 | 160 | 313 | 1 | 15.150 |
| 09947-250.110P | 225 x 100 x 225 | 538 | 326 | 180 | 313 | 1 | 15.800 |
