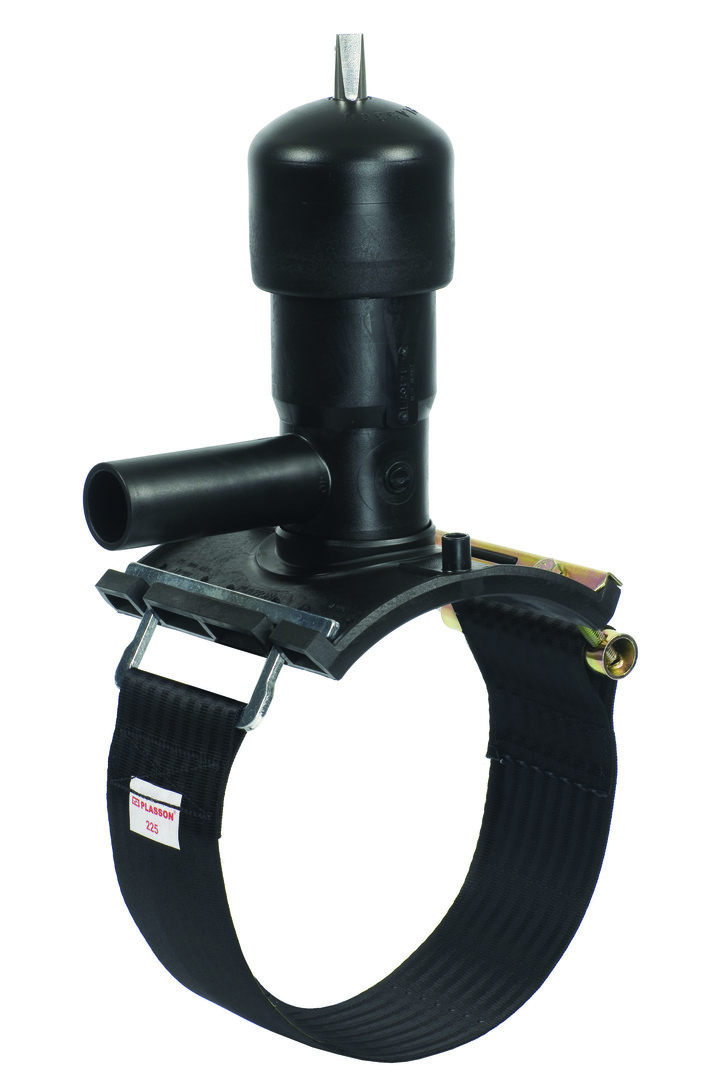

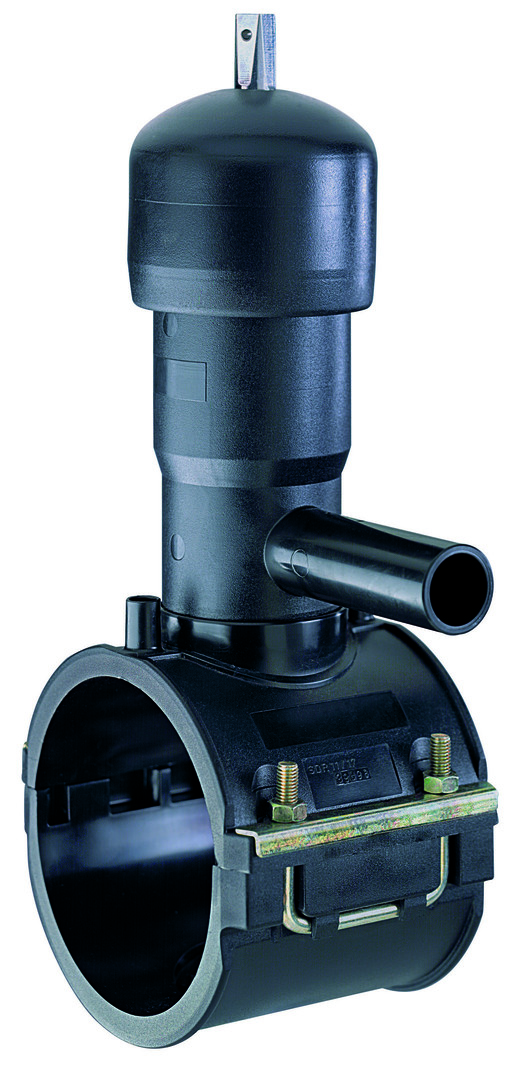

Ventilanbohrarmatur
mit integriertem Anbohrstanzer d=30 mm, Ventil aus Vollkunststoff, Stanzer und Spindel aus Metall
Gas PN 10, Wasser PN 16

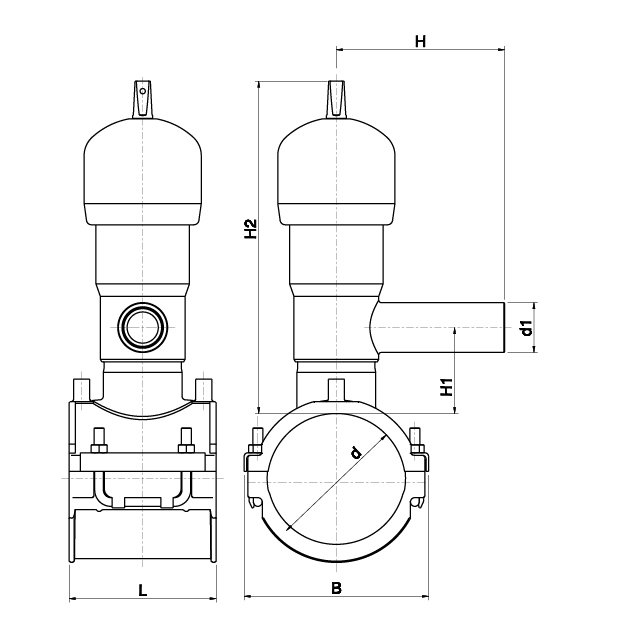

| Artikelnummer | d x d1 | H | B | Länge | Stk/Ktn | Gewicht g |
|---|---|---|---|---|---|---|
| 09540-063.32P | 63 x 32 | 126 | 103 | 118 | 8 | 2.090 |
| 09540-063.40P | 63 x 40 | 135 | 103 | 118 | 8 | 2.103 |
| 09540-063.50P | 63 x 50 | 150 | 103 | 118 | 8 | 2.140 |
| 09540-063.63P | 63 x 63 | 183 | 103 | 118 | 8 | 2.205 |
| 09540-075.32P | 75 x 32 | 126 | 117 | 118 | 8 | 2.100 |
| 09540-075.40P | 75 x 40 | 135 | 117 | 118 | 8 | 2.113 |
| 09540-075.50P | 75 x 50 | 150 | 117 | 118 | 8 | 2.150 |
| 09540-075.63P | 75 x 63 | 183 | 117 | 118 | 8 | 2.215 |
| 09540-090.32P | 90 x 32 | 126 | 128 | 118 | 8 | 2.150 |
| 09540-090.40P | 90 x 40 | 135 | 128 | 118 | 8 | 2.163 |
| 09540-090.50P | 90 x 50 | 150 | 128 | 118 | 8 | 2.200 |
| 09540-090.63P | 90 x 63 | 183 | 128 | 118 | 8 | 2.265 |
| 09540-110.32P | 110 x 32 | 126 | 145 | 118 | 8 | 2.267 |
| 09540-110.40P | 110 x 40 | 135 | 145 | 118 | 8 | 2.250 |
| 09540-110.50P | 110 x 50 | 150 | 145 | 118 | 8 | 2.280 |
| 09540-110.63P | 110 x 63 | 183 | 145 | 118 | 8 | 2.345 |
| 09540-125.32P | 125 x 32 | 126 | 162 | 118 | 8 | 2.277 |
| 09540-125.40P | 125 x 40 | 135 | 162 | 118 | 8 | 2.290 |
| 09540-125.50P | 125 x 50 | 150 | 162 | 118 | 8 | 2.327 |
| 09540-125.63P | 125 x 63 | 183 | 162 | 118 | 8 | 2.392 |
| 09540-140.32P | 140 x 32 | 126 | 178 | 118 | 8 | 2.285 |
| 09540-140.40P | 140 x 40 | 135 | 178 | 118 | 8 | 2.298 |
| 09540-140.50P | 140 x 50 | 150 | 178 | 118 | 8 | 2.335 |
| 09540-140.63P | 140 x 63 | 183 | 178 | 118 | 8 | 2.400 |
| 09540-160.32P | 160 x 32 | 126 | 199 | 118 | 8 | 2.377 |
| 09540-160.40P | 160 x 40 | 135 | 199 | 118 | 8 | 2.390 |
| 09540-160.50P | 160 x 50 | 150 | 199 | 118 | 8 | 2.427 |
| 09540-160.63P | 160 x 63 | 183 | 199 | 118 | 8 | 2.492 |
| 09540-180.32P | 180 x 32 | 126 | 219 | 118 | 8 | 2.440 |
| 09540-180.40P | 180 x 40 | 135 | 219 | 118 | 8 | 2.453 |
| 09540-180.50P | 180 x 50 | 150 | 219 | 118 | 8 | 2.490 |
| 09540-180.63P | 180 x 63 | 183 | 219 | 118 | 8 | 2.555 |
| 09540-200.32P | 200 x 32 | 126 | 202 | 176 | 5 | 2.431 |
| 09540-200.40P | 200 x 40 | 135 | 202 | 176 | 5 | 2.444 |
| 09540-200.50P | 200 x 50 | 150 | 202 | 176 | 5 | 2.481 |
| 09540-200.63P | 200 x 63 | 183 | 202 | 176 | 5 | 2.546 |
| 09540-225.32P | 225 x 32 | 126 | 229 | 176 | 5 | 2.488 |
| 09540-225.40P | 225 x 40 | 135 | 229 | 176 | 5 | 2.501 |
| 09540-225.50P | 225 x 50 | 150 | 229 | 176 | 5 | 2.538 |
| 09540-225.63P | 225 x 63 | 183 | 229 | 176 | 5 | 2.603 |
| 09540-250.32P | 250 x 32 | 126 | 254 | 176 | 5 | 2.504 |
| 09540-250.40P | 250 x 40 | 135 | 254 | 176 | 5 | 2.517 |
| 09540-250.50P | 250 x 50 | 150 | 254 | 176 | 5 | 2.554 |
| 09630-250.63P | 250 x 63 | 183 | 254 | 176 | 5 | 2.619 |
