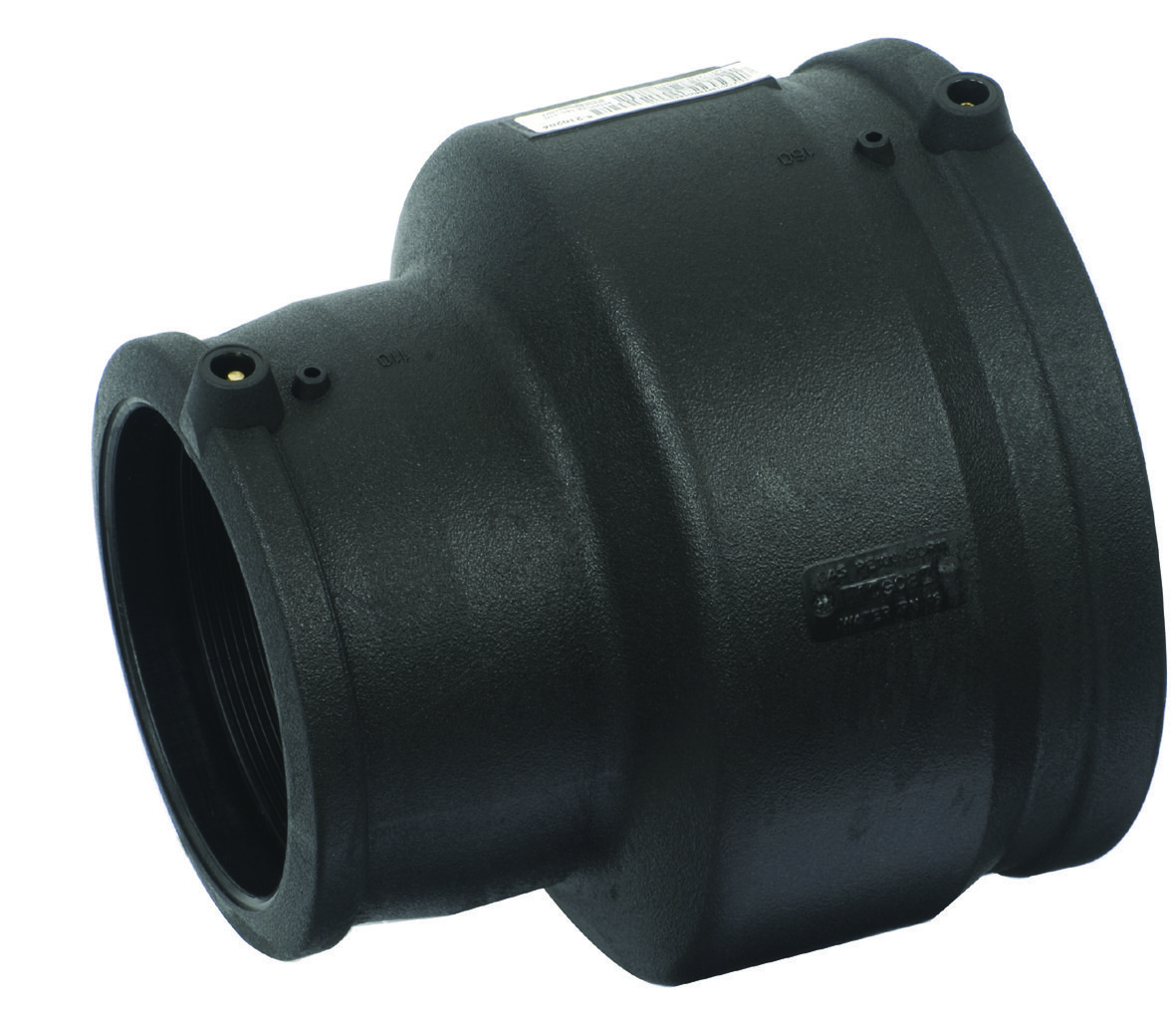

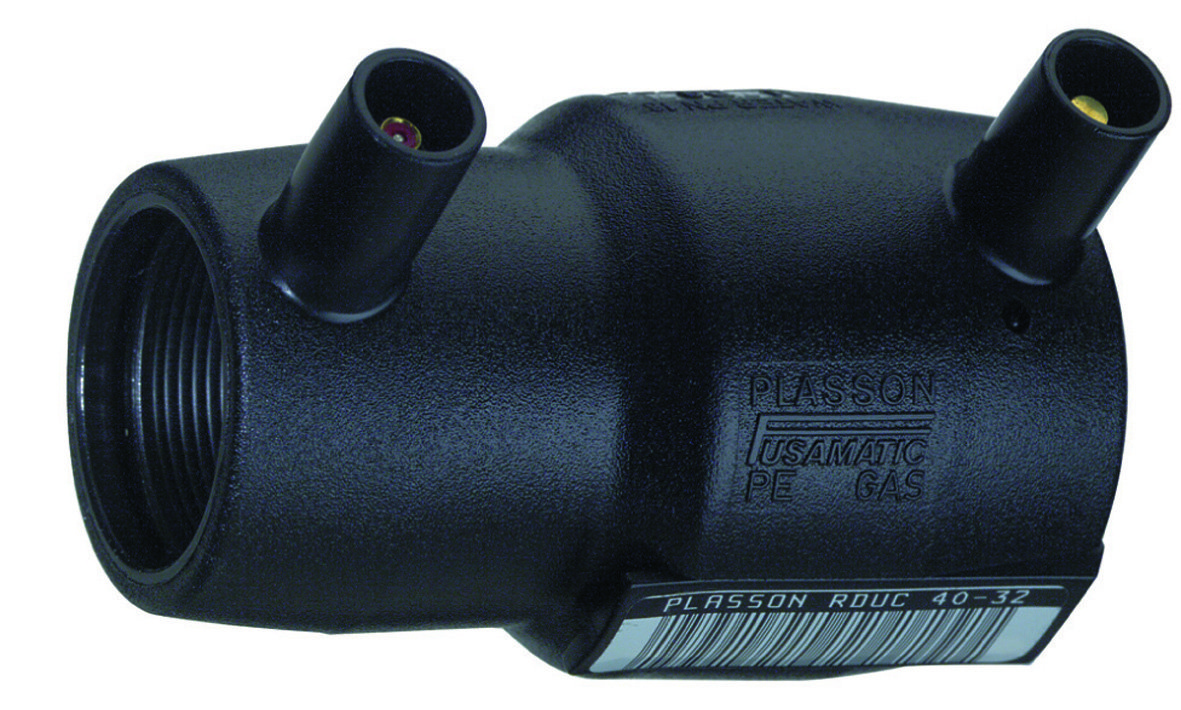

Reduziermuffe
Gas PN 10, Wasser PN 16

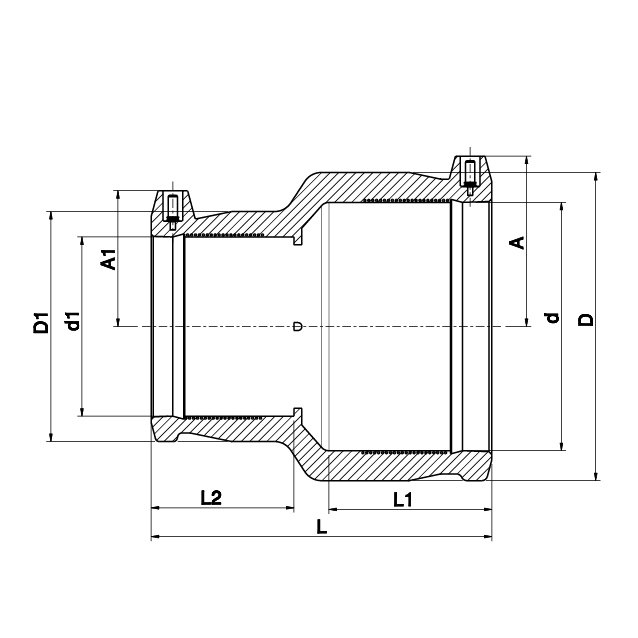

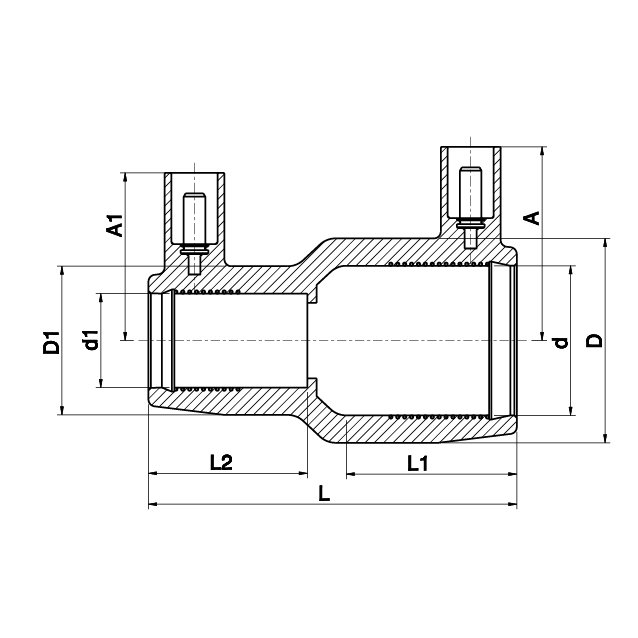

| Artikelnummer | d x d1 | L | Stk/Ktn | Gewicht g |
|---|---|---|---|---|
| 09110-020.16P | 20 x 16 | 71 | 480 | 53 |
| 09110-025.20P | 25 x 20 | 71 | 480 | 65 |
| 09110-032.20P | 32 x 20 | 80 | 360 | 55 |
| 09110-032.25P | 32 x 25 | 80 | 360 | 55 |
| 09110-040.32P | 40 x 32 | 90 | 160 | 123 |
| 09110-050.32P | 50 x 32 | 98 | 128 | 225 |
| 09110-050.40P | 50 x 40 | 98 | 128 | 192 |
| 09110-063.32P | 63 x 32 | 118 | 96 | 225 |
| 09110-063.40P | 63 x 40 | 118 | 96 | 310 |
| 09110-063.50P | 63 x 50 | 118 | 80 | 430 |
| 09110-075.63P | 75 x 63 | 126 | 65 | 440 |
| 09110-090.50P | 90 x 50 | 142 | 54 | 440 |
| 09110-090.63P | 90 x 63 | 144 | 44 | 486 |
| 09110-090.75P | 90 x 75 | 145 | 41 | 627 |
| 09110-110.63P | 110 x 63 | 158 | 32 | 627 |
| 09110-110.75P | 110 x 75 | 159 | 23 | 680 |
| 09110-110.90P | 110 x 90 | 161 | 23 | 695 |
| 09110-125.90P | 125 x 90 | 173 | 18 | 1.019 |
| 09110-125.110P | 125 x 110 | 173 | 18 | 1.025 |
| 09110-160.90P | 160 x 90 | 192 | 12 | 1.440 |
| 09110-160.110P | 160 x 110 | 193 | 12 | 1.520 |
| 09110-160.125P | 160 x 125 | 194 | 6 | 1.570 |
| 09110-180.125P | 180 x 125 | 211 | 6 | 2.060 |
