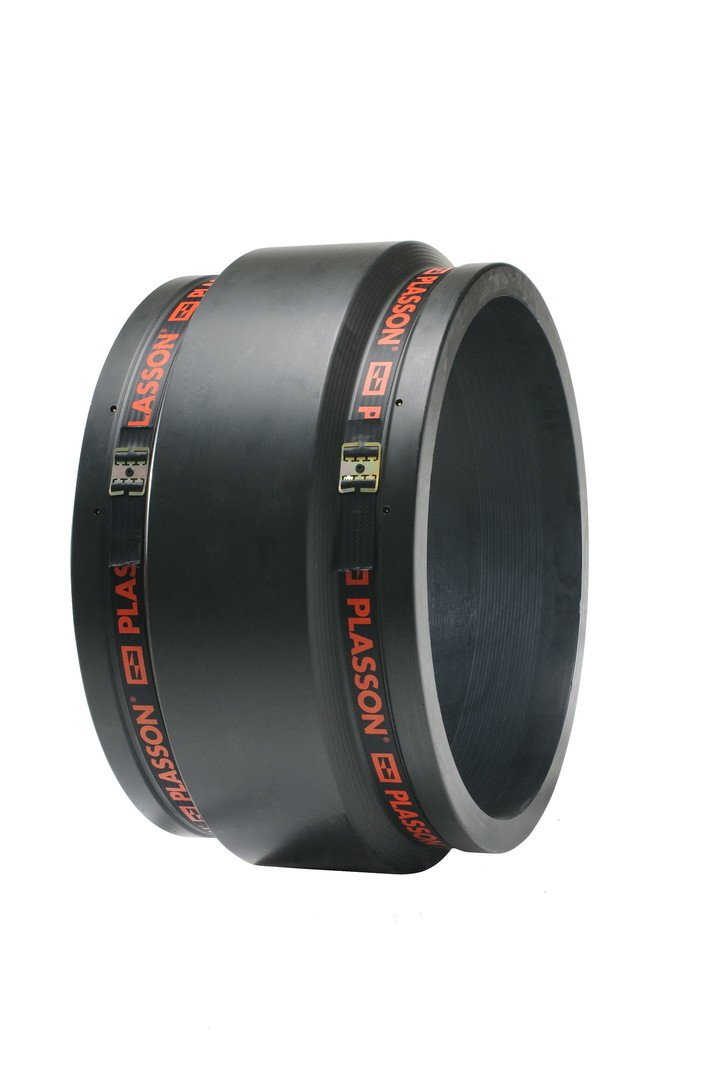

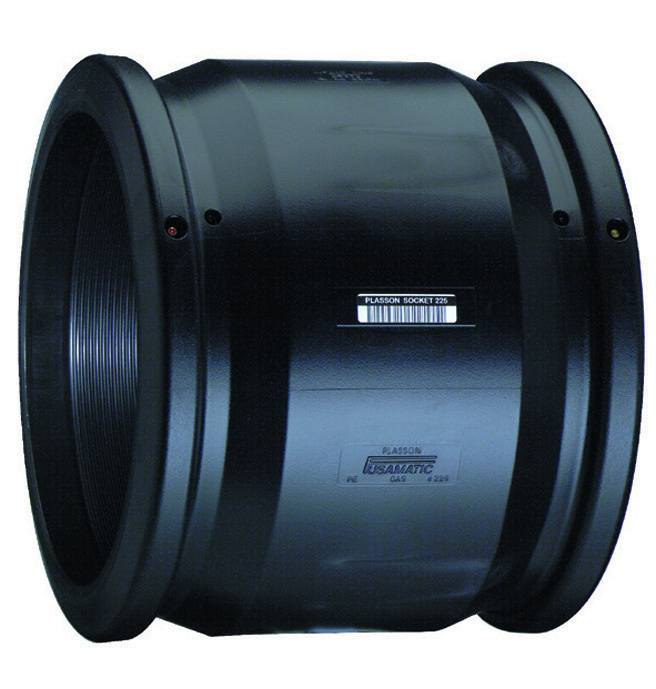

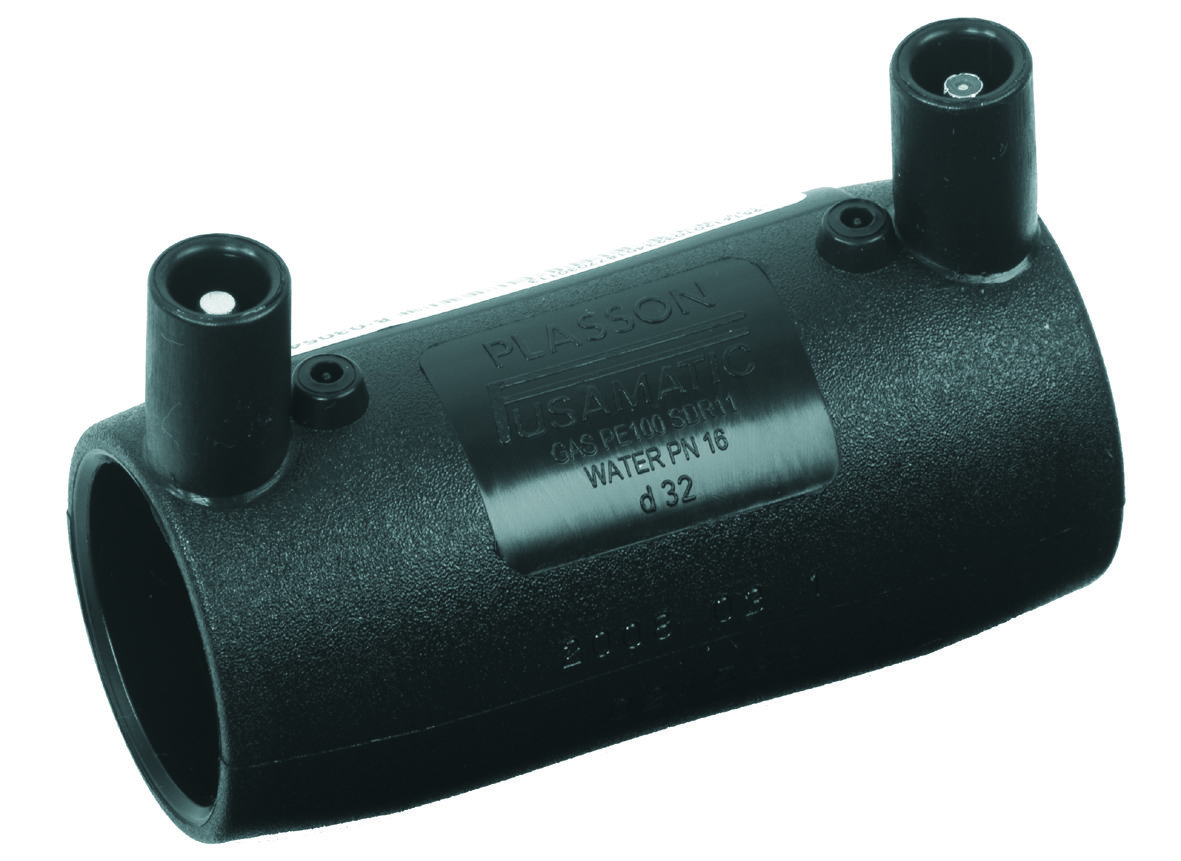

Muffe
Gas PN 10, Wasser PN 16

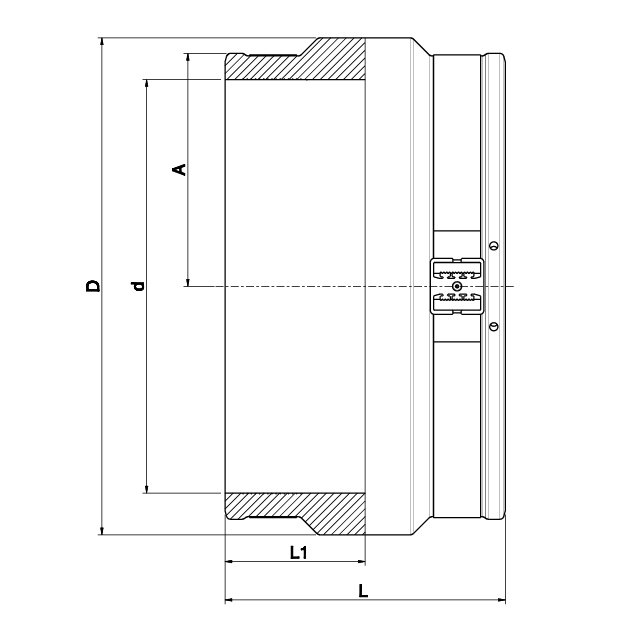

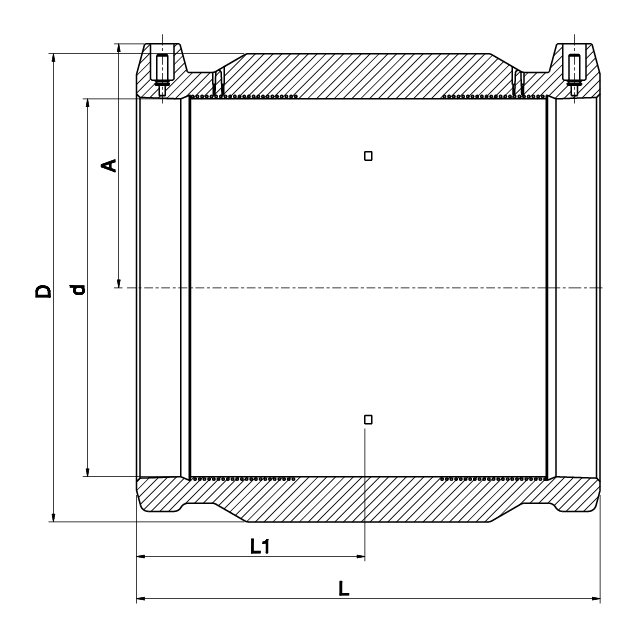

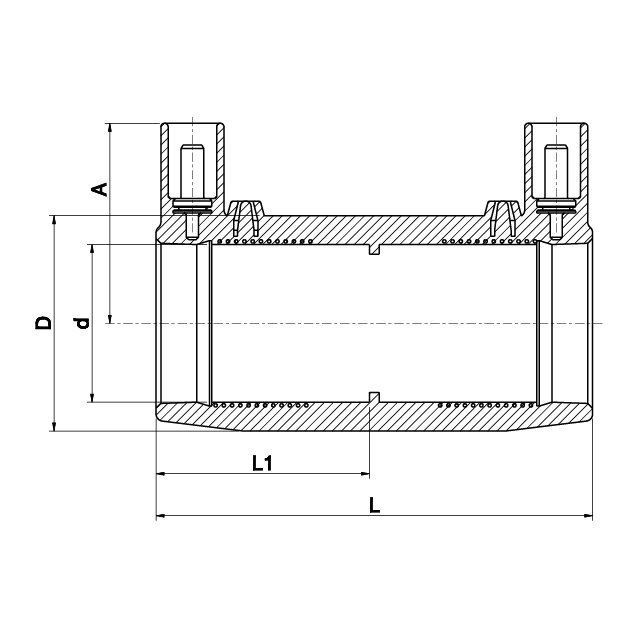

| Artikelnummer | d | L | D | Stk/Ktn | Gewicht g |
|---|---|---|---|---|---|
| 09010-020.00P | 20 | 76 | 32 | 480 | 48 |
| 09010-025.00P | 25 | 82 | 40 | 480 | 38 |
| 09010-032.00P | 32 | 90 | 44 | 256 | 60 |
| 09010-040.00P | 40 | 98 | 55 | 200 | 98 |
| 09010-050.00P | 50 | 101 | 68 | 132 | 150 |
| 09010-063.00P | 63 | 118 | 82 | 72 | 230 |
| 09010-075.00P | 75 | 126 | 98 | 60 | 344 |
| 09010-090.00P | 90 | 148 | 117 | 38 | 567 |
| 09010-110.00P | 110 | 163 | 140 | 23 | 807 |
| 09010-125.00P | 125 | 173 | 157 | 18 | 1.004 |
| 09010-140.00P | 140 | 182 | 175 | 12 | 1.339 |
| 09010-160.00P | 160 | 198 | 193 | 6 | 1.822 |
| 09010-180.00P | 180 | 211 | 217 | 4 | 2.553 |
| 09010-200.00P | 200 | 223 | 249 | 4 | 3.260 |
| 09010-225.00P | 225 | 240 | 273 | 4 | 4.260 |
| 09010-250.00P | 250 | 256 | 310 | 2 | 5.520 |
| 09010-280.00P | 280 | 275 | 339 | 1 | 6.140 |
| 09010-315.00P | 315 | 284 | 381 | 1 | 8.720 |
| 09010-355.00P | 355 | 280 | 430 | 1 | 10.384 |
| 09010-400.00P | 400* | 296 | 484 | 1 | 13.866 |
| 09010-450.00P | 450** | 310 | 543 | 1 | 15.800 |
| 09010-500.00P | 500** | 340 | 603 | 1 | 20.200 |
| 09010-560.00P | 560** | 376 | 674 | 1 | 28.000 |
| 09010-630.00P | 630** | 418 | 759 | 1 | 39.200 |
| 09010-710.00P | 710** | 472 | 853 | 1 | 55.700 |
| 09010-800.00P | 800** | 500 | 955 | 1 | 68.000 |
| 09010-900.00P | 900** | 500 | 1.070 | 1 | 100.100 |
* Ohne SmartFuse
** Ohne SmartFuse, jede Seite separat zu verschweißen
Auch als Überschiebe- oder Reparaturmuffe verwendbar; Mittelanschläge können entfernt werden.
