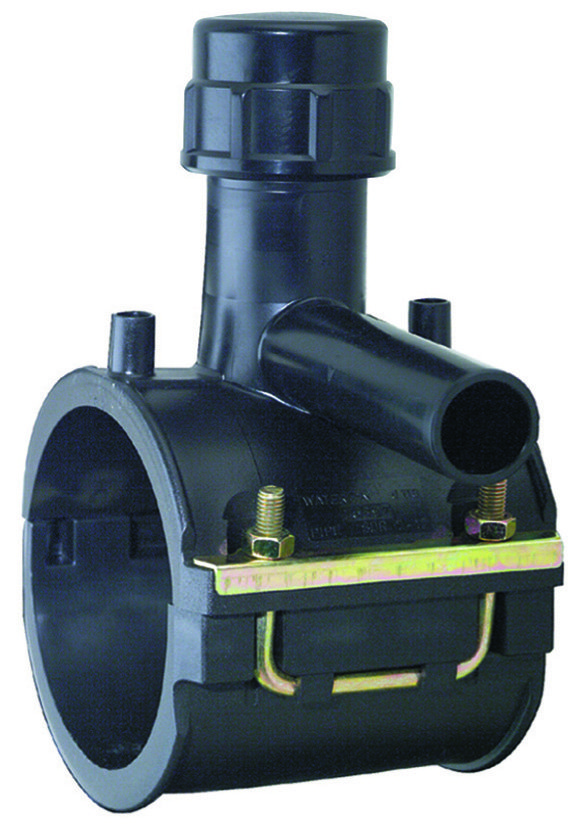

Anbohrschellen zum Anbohren ohne Gas-/Wasseraustritt
Gas PN 10, Wasser PN 16

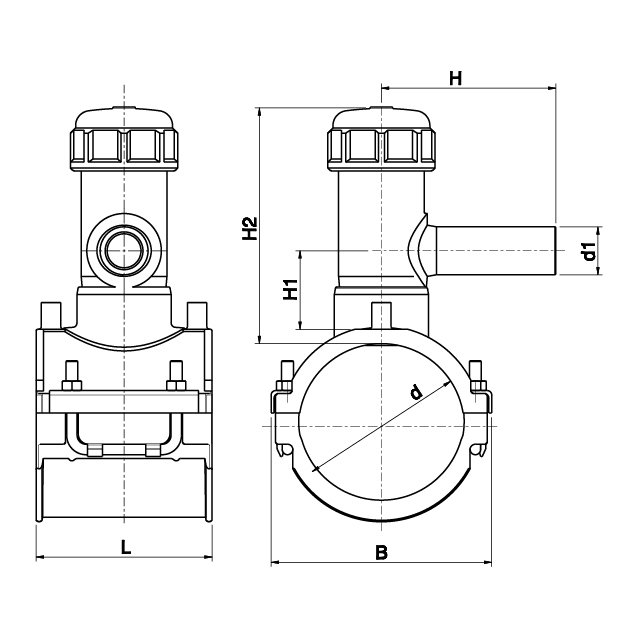

| Artikelnummer | d x d1 | H | B | Typ | Stk/Ktn | Gewicht g |
|---|---|---|---|---|---|---|
| 09630-040.20P | 40 x 20* | 105 | 66 | C | 40 | 350 |
| 09630-040.32P | 40 x 32* | 120 | 66 | C | 40 | 370 |
| 09630-050.20P | 50 x 20* | 110 | 76 | C | 40 | 390 |
| 09630-050.25P | 50 x 25* | 115 | 76 | C | 40 | 365 |
| 09630-050.32P | 50 x 32* | 120 | 76 | C | 40 | 410 |
| 09630-063.20P | 63 x 20* | 116 | 92 | C | 24 | 436 |
| 09630-063.25P | 63 x 25* | 120 | 92 | C | 24 | 435 |
| 09630-063.32P | 63 x 32* | 125 | 103 | C | 24 | 455 |
| 09630-063.40P | 63 x 40 | 148 | 103 | A | 16 | 1.070 |
| 09630-063.50P | 63 x 50 | 141 | 103 | A | 16 | 1.085 |
| 09630-063.63P | 63 x 63 | 178 | 103 | A | 16 | 1.100 |
| 09630-075.32P | 75 x 32 | 127 | 117 | A | 16 | 1.120 |
| 09630-075.40P | 75 x 40 | 148 | 117 | A | 16 | 1.130 |
| 09630-075.50P | 75 x 50 | 141 | 117 | A | 16 | 1.140 |
| 09630-075.63P | 75 x 63 | 178 | 117 | A | 16 | 1.150 |
| 09630-090.25P | 90 x 25* | 120 | 124 | B | 16 | 900 |
| 09630-090.32P | 90 x 32* | 125 | 124 | B | 20 | 1.120 |
| 09630-090.40P | 90 x 40* | 133 | 124 | B | 20 | 1.130 |
| 09630-090.50P | 90 x 50 | 141 | 128 | A | 14 | 1.210 |
| 09630-090.63P | 90 x 63 | 178 | 128 | A | 14 | 1.300 |
| 09630-110.32P | 110 x 32* | 127 | 145 | B | 20 | 1.170 |
| 09630-110.40P | 110 x 40* | 137 | 145 | B | 20 | 1.190 |
| 09630-110.50P | 110 x 50 | 141 | 145 | A | 12 | 1.210 |
| 09630-110.63P | 110 x 63 | 178 | 145 | A | 12 | 1.220 |
| 09630-125.32P | 125 x 32* | 130 | 162 | B | 15 | 1.230 |
| 09630-125.40P | 125 x 40 | 140 | 162 | B | 15 | 1.280 |
| 09630-125.50P | 125 x 50 | 141 | 162 | A | 12 | 1.290 |
| 09630-125.63P | 125 x 63 | 178 | 162 | A | 12 | 1.310 |
| 09630-140.32P | 140 x 32 | 127 | 178 | A | 12 | 1.350 |
| 09630-140.40P | 140 x 40 | 148 | 178 | A | 12 | 1.360 |
| 09630-140.50P | 140 x 50 | 141 | 178 | A | 12 | 1.370 |
| 09630-140.63P | 140 x 63 | 178 | 178 | A | 12 | 1.410 |
| 09630-160.32P | 160 x 32* | 143 | 199 | A | 10 | 1.345 |
| 09630-160.40P | 160 x 40* | 156 | 199 | A | 10 | 1.360 |
| 09630-160.50P | 160 x 50* | 169 | 199 | A | 10 | 1.375 |
| 09630-160.63P | 160 x 63* | 195 | 199 | A | 10 | 1.390 |
| 09630-180.32P | 180 x 32* | 143 | 219 | A | 10 | 1.565 |
| 09630-180.40P | 180 x 40* | 156 | 219 | A | 10 | 1.580 |
| 09630-180.50P | 180 x 50* | 169 | 219 | A | 10 | 1.595 |
| 09630-180.63P | 180 x 63* | 195 | 219 | A | 10 | 1.605 |
| 09630-200.32P | 200 x 32** | 127 | 202 | A | 8 | 1.496 |
| 09630-200.40P | 200 x 40** | 148 | 202 | A | 8 | 1.506 |
| 09630-200.50P | 200 x 50** | 141 | 202 | A | 8 | 1.516 |
| 09630-200.63P | 200 x 63** | 178 | 202 | A | 8 | 1.556 |
| 09630-225.32P | 225 x 32** | 127 | 227 | A | 8 | 1.553 |
| 09630-225.40P | 225 x 40** | 148 | 227 | A | 8 | 1.563 |
| 09630-225.50P | 225 x 50** | 141 | 227 | A | 8 | 1.573 |
| 09630-225.63P | 225 x 63** | 178 | 227 | A | 8 | 1.613 |
| 09630-250.32P | 250 x 32** | 127 | 252 | A | 8 | 1.569 |
| 09630-250.40P | 250 x 40** | 148 | 252 | A | 8 | 1.582 |
| 09630-250.50P | 250 x 50** | 141 | 252 | A | 8 | 1.589 |
| 09630-250.63P | 250 x 63** | 178 | 252 | A | 8 | 1.629 |
* Ausführung in Monoblock

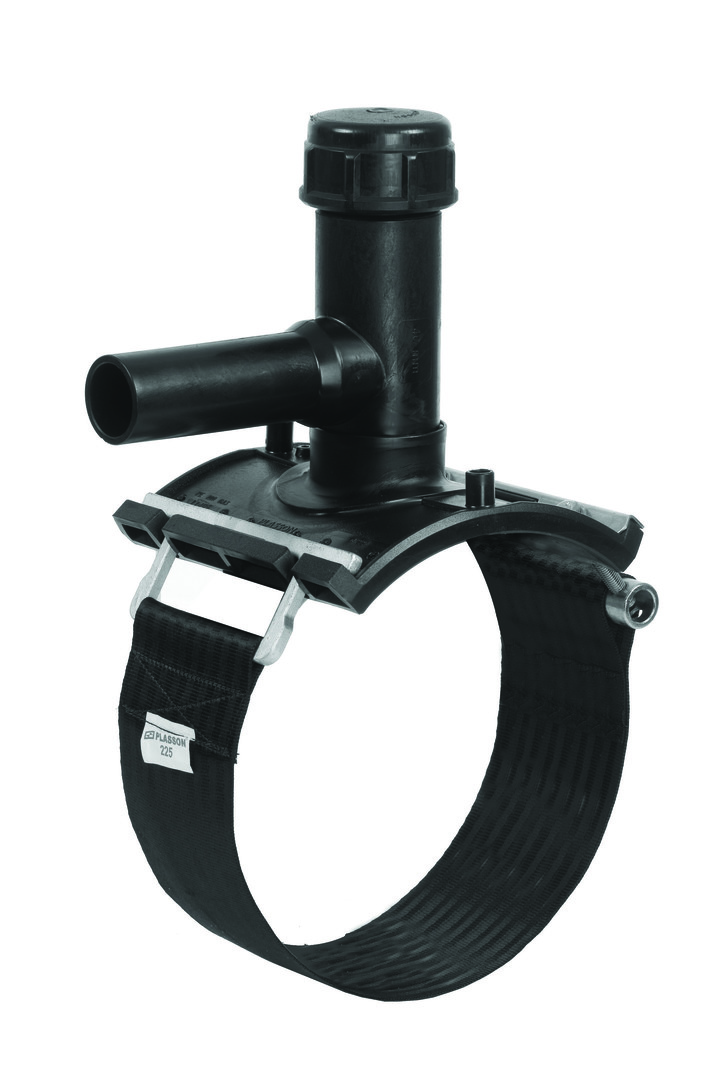

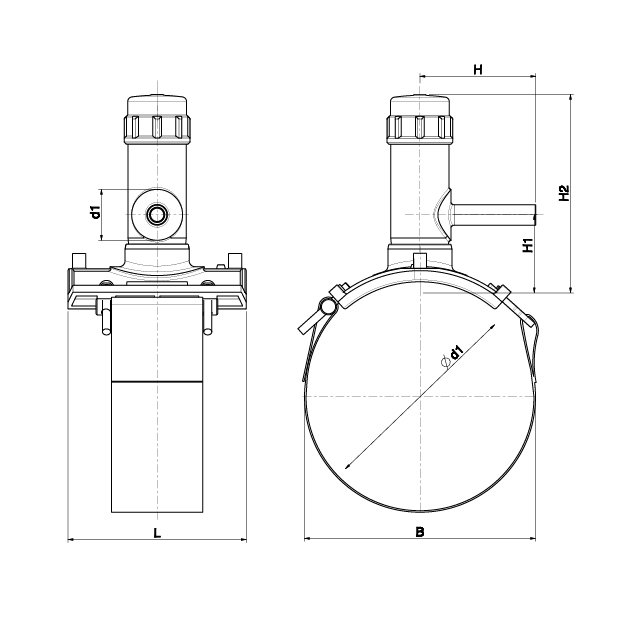

** Ausführung mit Metallspannbändern
