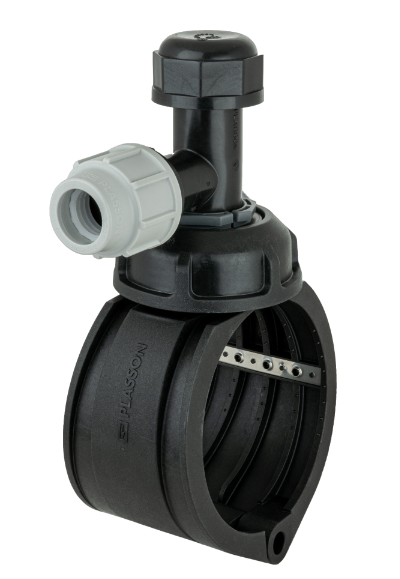

PLASSADDLE - Anbohrschelle PP mit Messingfräser für PE und PVC-U Rohre
PN 16

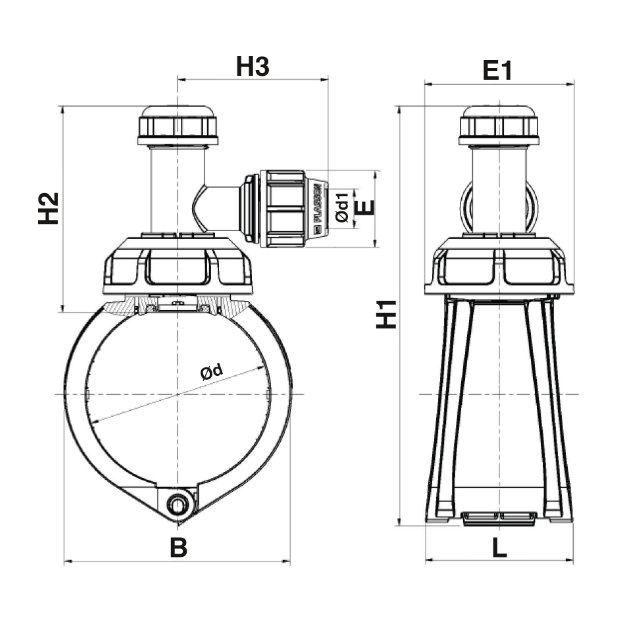

| Artikel-Nummer | d x d1 | B | E | E1 | H1 | H2 | H3 | L | Stk/Pck | Stk/Ktn | Gewicht g |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1631-063.25 | 63 x 25 | 91 | 54 | 102 | 231 | 144 | 106 | 89 | 1 | 30 | 640 |
| 1631-063.32 | 63 x 32 | 91 | 64 | 102 | 231 | 144 | 111 | 89 | 1 | 30 | 670 |
| 1631-090.25 | 90 x 25 | 119 | 54 | 102 | 258 | 144 | 106 | 94 | 1 | 25 | 710 |
| 1631-090.32 | 90 x 32 | 119 | 64 | 102 | 258 | 144 | 111 | 94 | 1 | 25 | 750 |
| 1631-110.25 | 110 x 25 | 141 | 54 | 102 | 273 | 144 | 106 | 97 | 1 | 24 | 760 |
| 1631-110.32 | 110 x 32 | 141 | 64 | 102 | 273 | 144 | 111 | 97 | 1 | 24 | 790 |
| 1631-125.25 | 125 x 25 | 157 | 54 | 102 | 290 | 144 | 106 | 100 | 1 | 24 | 820 |
| 1631-125.32 | 125 x 32 | 157 | 64 | 102 | 290 | 144 | 111 | 100 | 1 | 20 | 850 |
| 1631-160.25 | 160 x 25 | 198 | 54 | 102 | 325 | 144 | 106 | 106 | 1 | 18 | 970 |
| 1631-160.32 | 160 x 32 | 198 | 64 | 102 | 325 | 144 | 111 | 106 | 1 | 18 | 1.000 |
| 1631-180.25 | 180 x 25 | 220 | 54 | 102 | 350 | 144 | 106 | 110 | 1 | 16 | 1.050 |
| 1631-180.32 | 180 x 32 | 220 | 64 | 102 | 350 | 144 | 111 | 110 | 1 | 16 | 1.110 |
| 1631-200.25 | 200 x 25 | 246 | 54 | 102 | 368 | 144 | 106 | 115 | 1 | 15 | 1.350 |
| 1631-200.32 | 200 x 32 | 246 | 64 | 102 | 368 | 144 | 111 | 115 | 1 | 15 | 1.380 |
