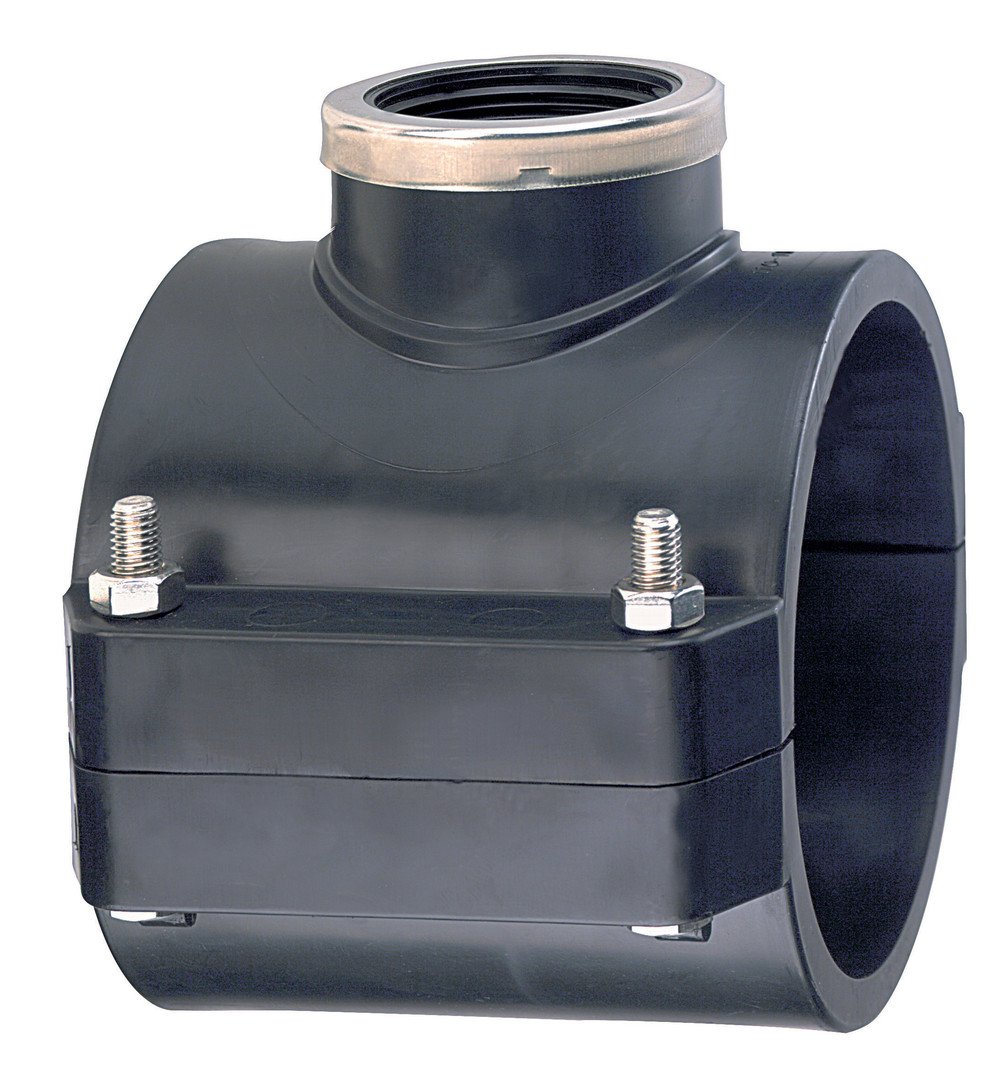

Anbohrschelle mit V2A Schrauben und Verstärkung
PN 12,5, ab d 75 mm PN 10

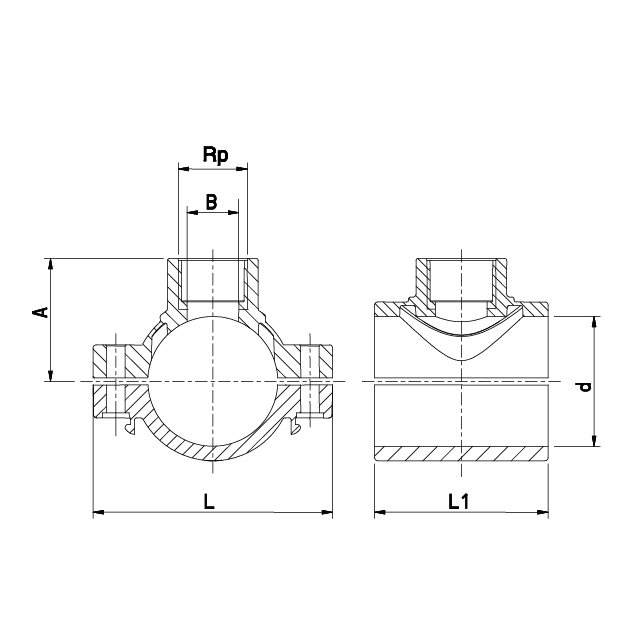

| Artikelnummer | d x Rp | A | B | L | L1 | Schrauben | Stk/Ktn | Gewicht g |
|---|---|---|---|---|---|---|---|---|
| 6077-025.02/V4A | 25 x 1/2" | 36 | 15 | 75 | 50 | 2 | 300 | 70 |
| 6077-032.02/V4A | 32 x 1/2" | 40 | 16 | 92 | 60 | 2 | 150 | 133 |
| 6077-032.03/V4A | 32 x 3/4" | 41 | 19 | 92 | 60 | 2 | 150 | 135 |
| 6077-040.03/V4A | 40 x 3/4" | 46 | 19 | 92 | 60 | 2 | 150 | 143 |
| 6077-040.04/V4A | 40 x 1" | 49 | 25 | 92 | 60 | 2 | 150 | 151 |
| 6076-050.02/V2A | 50 x 1/2" | 51 | 16 | 106 | 73 | 2 | 100 | 179 |
| 6077-050.03/V4A | 50 x 3/4" | 52 | 21 | 106 | 73 | 2 | 100 | 180 |
| 6076-050.04/V2A | 50 x 1" | 54 | 25 | 106 | 73 | 2 | 100 | 187 |
| 6076-050.05/V2A | 50 x 1.1/4" | 58 | 25 | 106 | 73 | 2 | 100 | 212 |
| 6077-063.03/V4A | 63 x 3/4" | 59 | 20 | 116 | 84 | 4 | 70 | 280 |
| 6077-063.04/V4A | 63 x 1" | 61 | 25 | 116 | 84 | 4 | 70 | 286 |
| 6077-063.06/V4A | 63 x 1.1/2" | 67 | 39 | 116 | 84 | 4 | 70 | 322 |
| 6076-075.03/V2A | 75 x 3/4" | 65 | 20 | 122 | 98 | 4 | 55 | 369 |
| 6077-075.04/V4A | 75 x 1" | 67 | 25 | 122 | 98 | 4 | 55 | 376 |
| 6077-075.06/V4A | 75 x 1.1/2" | 73 | 40 | 122 | 98 | 4 | 50 | 411 |
| 6077-075.08/V4A | 75 x 2" | 78 | 40 | 122 | 98 | 4 | 50 | 433 |
| 6076-090.04/V2A | 90 x 1" | 75 | 25 | 141 | 105 | 4 | 45 | 460 |
| 6076-090.06/V2A | 90 x 1.1/2" | 81 | 40 | 141 | 105 | 4 | 40 | 493 |
| 6076-090.08/V2A | 90 x 2" | 86 | 50 | 141 | 105 | 4 | 40 | 511 |
| 6076-110.04/V2A | 110 x 1" | 87 | 25 | 165 | 116 | 4 | 36 | 566 |
| 6076-110.06/V2A | 110 x 1.1/2" | 92 | 40 | 165 | 116 | 4 | 36 | 600 |
| 6076-110.08/V2A | 110 x 2" | 97 | 50 | 165 | 116 | 4 | 30 | 615 |
| 6076-125.08/V2A | 125 x 2" | 104 | 50 | 184 | 124 | 6 | 30 | 796 |
| 6076-140.06/V2A | 140 x 1.1/2" | 107 | 40 | 201 | 136 | 6 | 24 | 922 |
| 6076-160.06/V2A | 160 x 1.1/2" | 118 | 40 | 223 | 145 | 6 | 20 | 1.071 |
| 6077-160.08/V4A | 160 x 2" | 123 | 50 | 223 | 145 | 6 | 20 | 1.080 |
